This Steel Design App lets you determine the elastic stresses.

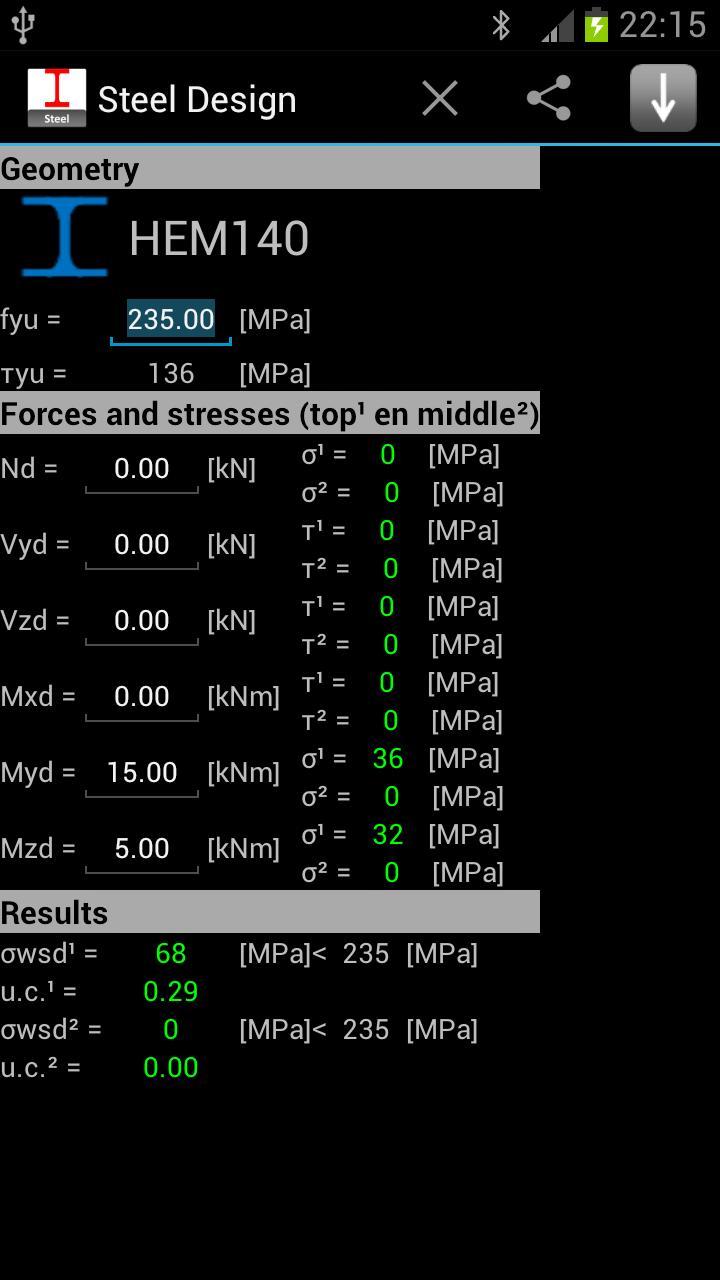

This Steel Design App lets you determine the elastic stresses at the top and in the middle of a beam, given the forces on the beam based on the theory of ‘Huber-Hencky’. Axial force, double shear and
double bending are included.
Features:
* Input Mx, My, Mz
* Both US and metric units
* Select an arbitrary beam from our Engineering Libraries app
* Outputs stresses and unity check
* Integration with our Frame Design 2D app.
* Export possibilities
* Graphs
Download
