HMI LOGO! is a HMI solution for mobile Logo! OBA7 OBA8 and S7 1200 Siemens

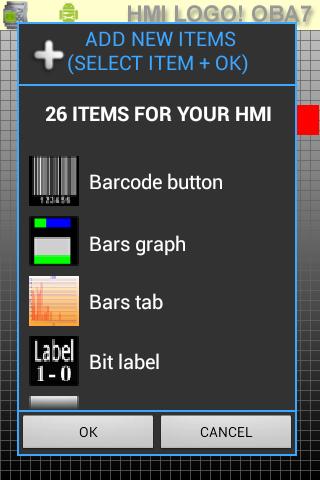

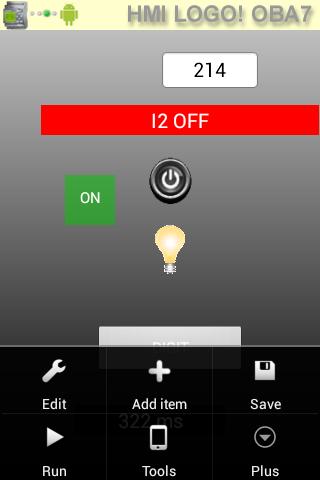

HMI LOGO! is a mobile solution for creating a man-machine interface, without programming XML to communicate with the Logo! 0BA7 OBA8 and S7 1200 (new !) Siemens Ethernet port. Connection is possible over WiFi or 3G +. You can control the logo! ,reading of the inputs (I), outputs (Q) and bit memory (M), read and write data blocks (VM)
The memory values of the format can be of type bool, unsigned and signed integer 16/32 bit, real (32bit) and BCD (2 bytes)
To communicate with the Logo! 0BA7 OBA8 and S7 1200, I used bookstore "Snap7" (http://snap7.sourceforge.net/logo.html)
if you have problems, please send me an email.
You can connect multiple equipment at the same time adding connection (server) in logo! Soft
Please be sure what you are doing !! I also remember the warnings of the author of Snap7, the code Snap7 is still beta and you assume full responsibility for its use.
Logo! is a registered trademarks of Siemens AG
Latest version of user manual below
https://drive.google.com/file/d/0B_lhSvTEvLpkSFhvTS14LTRNc28/view?usp=sharing
the Facebook user page
https://www.facebook.com/pages/Hmimm-and-Hmi-Oba7-Oba8/868397603207641
good test!
Alain H.
Download
