Advertising & Free app calculates gear sizes for spur gears
App to calculate gear sizes for spur gears.
Control your homework.
But also provides the opportunity for school tasks or exercises to design .
Enter all values of the given task, click calculate, done.

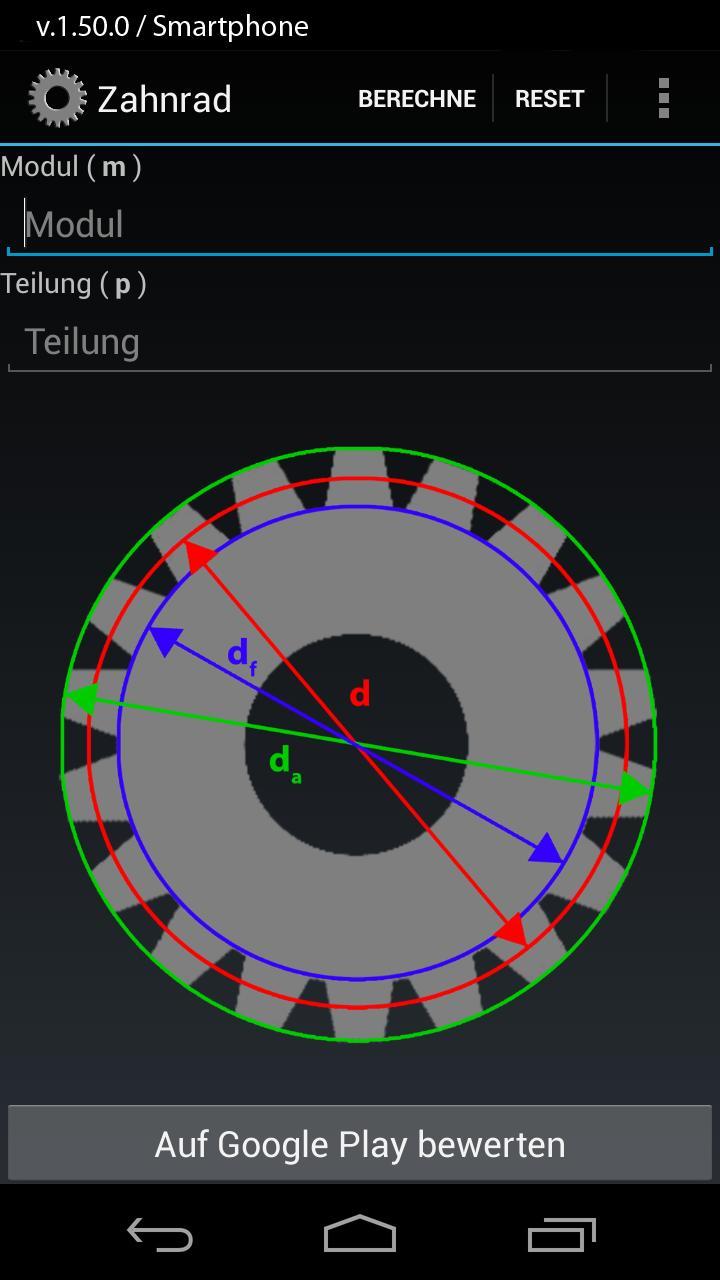

Color graphics facilitate the assignment of terms to the respective gear sizes.
( From v1.04 for tablets , from v1.05 for all devices)

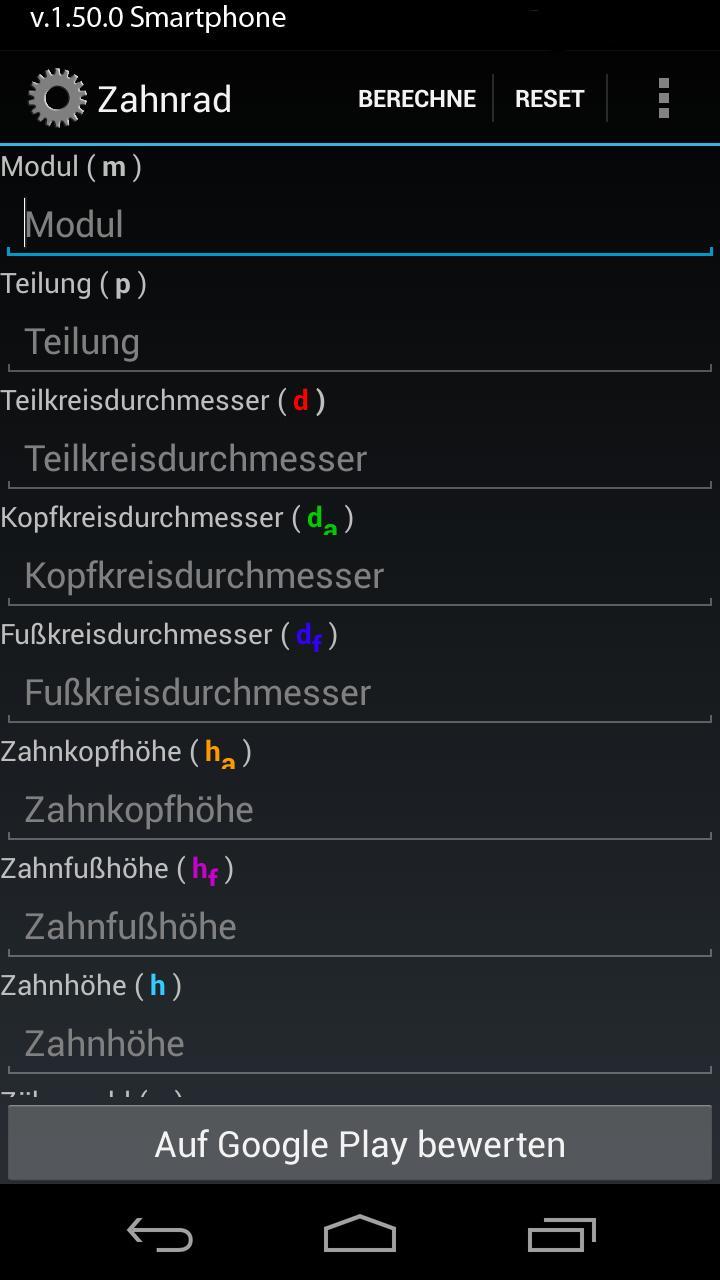

The following values can be calculated with appropriate default values :
- Module ( free , non-standard DIN 780)
- Pitch circle diameter
- Tip diameter
- root diameter
- Tooth height ( Fräßtiefe )
- dedendum
- Addendum
- Number of teeth
- division
- Head Games (factor 0.167 is fixed)
limitations:
- No support for inch. Calculations only in millimeters!
- The factor 0.167 is predefined by the head game.
- Pi is assumed to be 3.14 .
- No consideration to DIN 780
- As of version 1.05.1
"Gingerbread" and "Honeycomb" is no longer officially supported,
but this version remains available until further notice for older devices.
this means: no translation and no new features for version 1.05.1
Caution! This app is not suitable for production use . It has been designed only for training and school.
For industrial mechanic , machinist , tool makers , machine builders , technicians and students.
Download
